yas ppr yeeb nkab thiab haum cov lus piav qhia:
PPR yog polypropylene random copolymer yeeb nkab. Lawv tsim nyog rau cov dej txias thiab dej kub pressurized kav dej thiab mechanical systems. Nws yog feem ntau koom nrog txoj kev fusion welding, xws li qhov kawg mus rau qhov kawg (lub taub qab) weld lossis fusion weld rau hauv qhov chaw haum.
 |  |

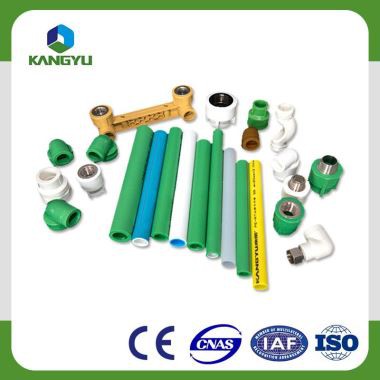

| ppr yeeb nkab ntsuab xim Tuam Tshoj tsum | ppr haum dawb lossis ntsuab xim Tuam Tshoj tsum |
Ppr pipe size list
PN 1.25MPa | PN 1.6MPa | PN 2 0MPa | PN 2.5MPa | |
Sab nraud dn (mm) | Phab ntsa Thickness en (mm) | Phab ntsa Thickness en (mm) | Phab ntsa Thickness en (mm) | Phab ntsa Thickness en (mm) |
20 | 2.0 | 2.3 | 2.8 | 3.4 |
25 | 2.3 | 2.8 | 3.5 | 4.2 |
32 | 3.0 | 3.6 | 4.4 | 5.4 |
40 | 3.7 | 4.5 | 5.5 | 6.7 |
50 | 4.6 | 5.6 | 6.9 | 8.4 |
63 | 5.8 | 7.1 | 8.7 | 10.5 |
75 | 6.9 | 8.4 | 10.3 | 12.5 |
90 | 8.2 | 10.1 | 12.3 | 15.0 |
110 | 10.0 | 12.3 | 15.1 | 18.3 |
160 | 14.6 | 17.9 | 21.7 | 26.6 |
Peb Rhiav Loading cov ntsiab lus:
Ib qho nthuav, Thov tsis txhob poob siab los txuas rau peb:
Cim npe nrov: Ppr yeeb nkab, Suav teb, manufacturers, lwm tus neeg, lag luam wholesale, customized
